6-20mL 20mm Crimp-Top Headspace ND20

Material: USP Type 1, Class A, 33 Borosilicate Glass
Dimensions: 22 x 38mm/22.5 x 46mm/22.5 x 75mm
Application: GC system
Neck Diameter: 20mm
Qty/Pack: 100pcs/pack
Volume: 6-20ml
Payment: T/T
MOQ: 1 pack

Product Introduction

Details

Products name 6-20mL 20mm Crimp-Top Headspace ND20
Dimension 20mm
Cap Color Silver
Septa details White, Nature, Grey,3mm thickness.
Material Aluminum for Cap, PTFE/Silicone for Septa
Package 100pcs/Pack
Cap type Open top
Septa type Non-slit

Description

Headspace vials form Aijiren Technology, Inc with high quality and favorable price. Zhejiang Aijiren is a autosampler vials manufacturer, we supply autosampler vials, septa and caps with factory price without extra cost.

20mm Headspace Crimp Vials are often used in Shimadzu, Spectral Physics, Varian, and other autosamplers.

20mm crimp top septa is used PTFE and high-quality silicone rubber or ultra-pure silica as raw materials, the gasket is guaranteed to be non-toxic.

1. Bevelled top design

2. Available with amber or clear vial

3. Available with 20ml or 10ml vial

4. Magnetic Aluminum cap suit for CTC instrument

5. Butyl/PTFE, Pharma-Fix-Liner (Butyl/PTFE), Silicone/PTFE are all Available

6. Rounded or flat bottom profiles are available for accurate instrument compatibility

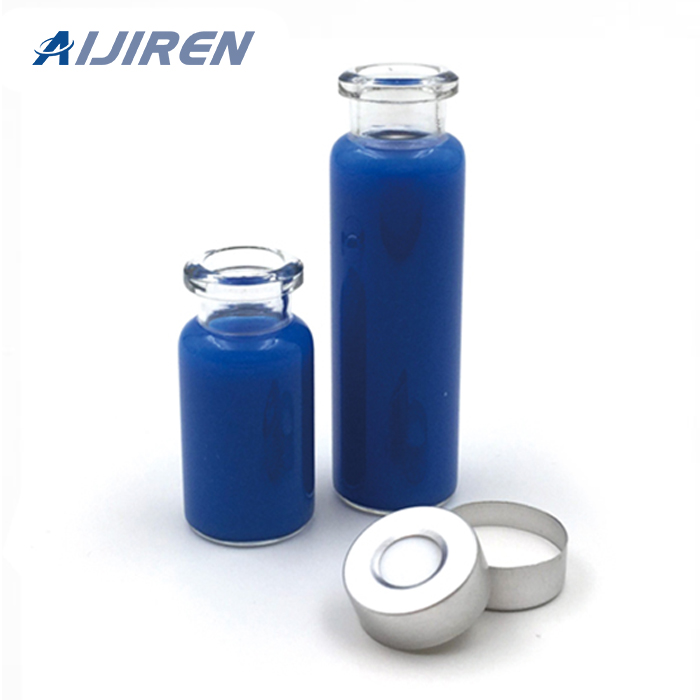

7. 6ml crimp top headspace vial with matched 20mm Aluminum & Magnetic Aluminum cap, 20mm PTFE/rubber septa

20mm Septa

Features

1. Crimp caps provide a consistently secure seal

2. Beveled top for maximum secure seal

3. Choice of a pressure safety release cap at 45 psi

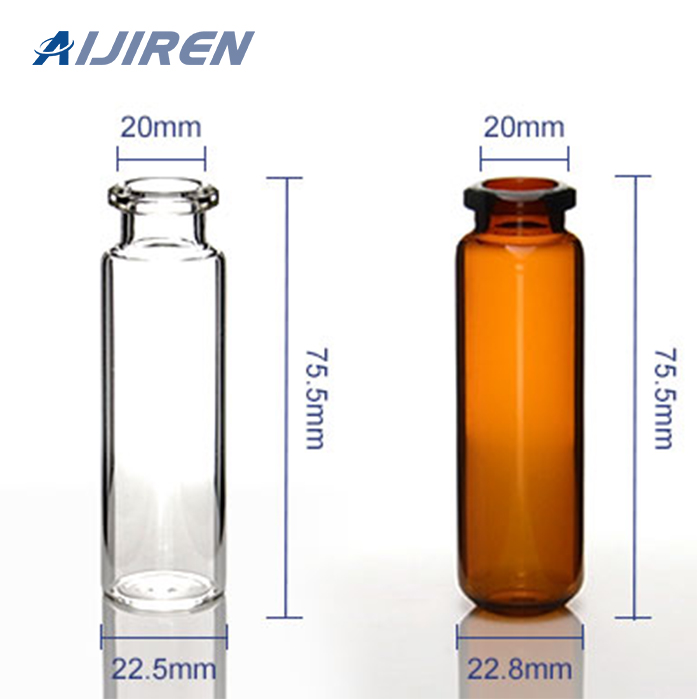

4. 10/20mL Clear /Amber Precision Crimp Headspace Vial,Flat/Round Bottom, 22.5*46mm

5. PTFE/Silicone Septa Φ20*3mm Temperature Resistant -60℃-200℃ with 9mm thread

6. Crimp-top Aluminum Cap, 10mm Centre Hole Φ20mm

7. Crimp-top Blue Magnetic Aluminum cap, 10mm Centre Hole Φ20mm available

About 6mL vials:

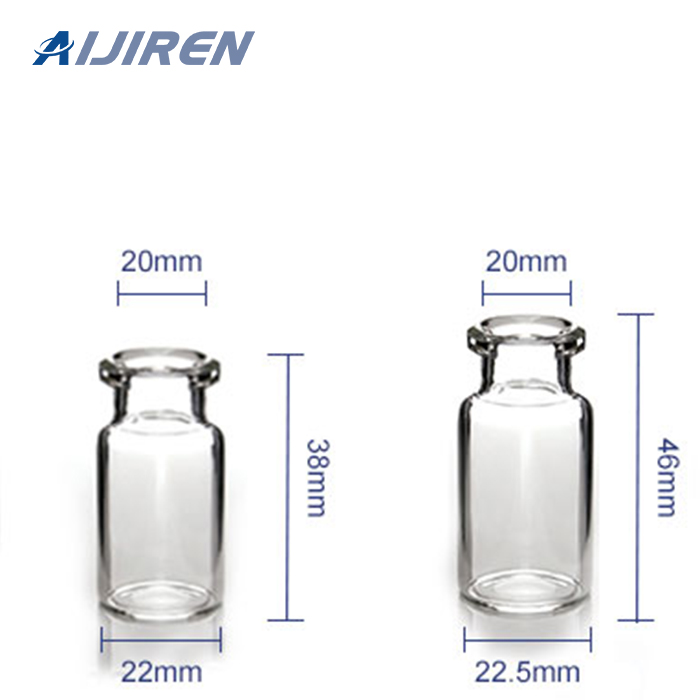

1. 6ml crimp vials ,22*38mm

2. suitable metrohm instruments

3. Available with amber or clear vial

Caps packing

Technical Parameter

1. 20mm Headspace Crimp Vials ND20

Part No. VH0613 VH1017 (Economy)
VH1013
VHR1017 VH1035
Description 6mL
Clear Crimp-top
Headspace Vial,
Flat Bottom,
22*38mm
10mL
Clear Crimp-top
Headspace Vial,
Flat Bottom,
22.5*46mm
10mL
Clear Crimp-top
Headspace Vial,
Round Bottom
22.5*46mm
10mL
Amber Crimp-top
Headspace Vial,
Flat Bottom,
22.5*46mm

Part No. VH2017 (Economy)
VH2013
VHR2017 (Economy)
VHR2013
 VH2035  VHR2035
 Description 20mL
Clear Crimp-top
Headspace Vial,
Flat Bottom,
22.5*75mm
20mL
Clear Crimp-top
Headspace Vial,
Round Bottom,
22.8*75mm
20mL
Amber Crimp-top
Headspace Vial,
Flat Bottom,
22.5*75mm
20mL
Amber Crimp-top
Headspace Vial,
Round Bottom,
22.5*75mm

2. 20mm Crimp-top Aluminum Caps with Septa

Part No. SC201201 SBC201202 MSC206201 MSC207201 SCS201201
Description White PTFE/White Silicone Septa,
20mm Crimp-top Aluminum Cap,
10mm Centre Hole
White PTFE/White Silicone Septa,
20mm Crimp-top Blue Magnetic
Aluminum Cap,
10mm Centre Hole
Grey PTFE/Moulded Butyl Septa,
20mm Crimp-top Aluminum Cap,
10mm Centre Hole
Grey PTFE/Pharma-Fix Butyl Septa,
20mm Crimp-top Aluminum Cap,
10mm Centre Hole



White PTFE/White Silicone Septa
20mm Pressure Release Cap,
7.8mm Centre Hole
